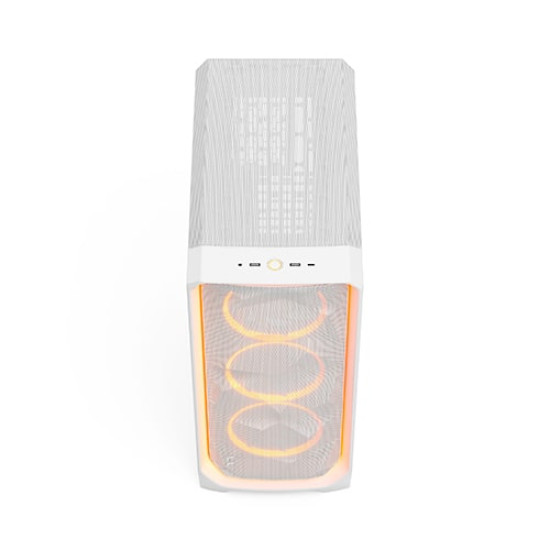

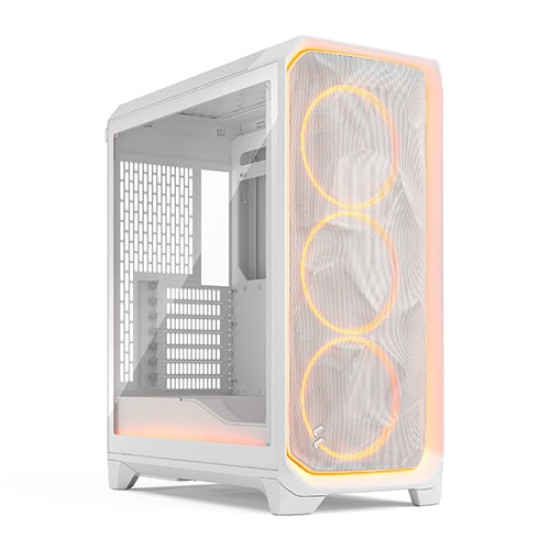

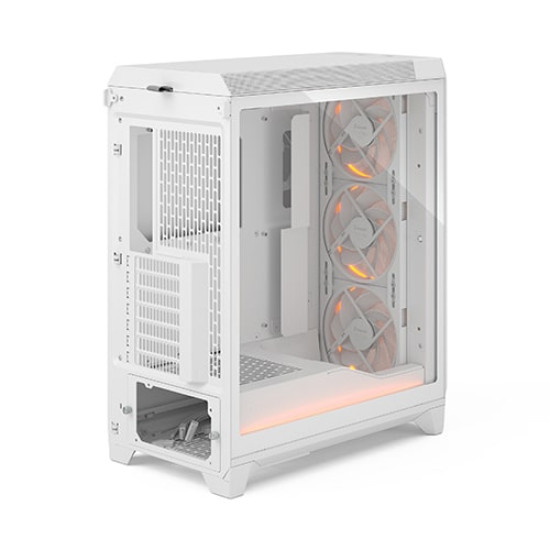

Fractal Design Meshify 3 Ambience Pro RGB White TG Clear Tint Mid-Tower Case (FD-C-MES3A-05)

Key Features

Advanced airflow

Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling

Advanced airflow

Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling

Designed for gaming

Create a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX motherboard compatibility

Evolved design

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel

Enhanced lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect

Tailored experience

Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub

Easily accessible

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab

Powerful fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation

Cooler compatible

Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation

Accessible I/O

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack

Clean finish

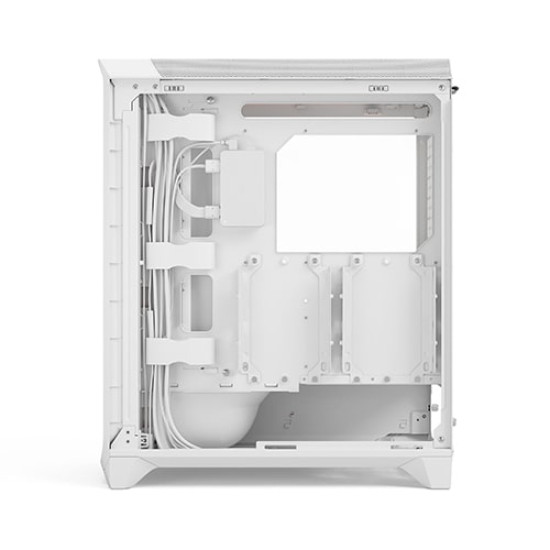

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing

Specification

3.5"/2.5" drive mounts : 2/4

Dedicated 2.5" drive mounts : 2 (6 total)

5.25” drive mounts : -

Expansion slots : 7

Adjust Pro Hub : Included in Ambience Pro RGB version

Ambient Case Lighting : Ambience Pro RGB version

Front interface : 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button

Total fan mounts : 6x 120 mm or 5x 140 mm + 1x 120 mm

Front fan : 3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included)

Top fan : 2x 120 mm, 2x 140 mm

Rear fan : 1x 120 mm

Bottom fan : -

Dust filters : PSU (Bottom)

Cable routing space : 34,5 mm

Cable cover : Yes

Cable organizers : 3 Hook-and-loop straps + 3 Cable Aligners

Tool-less push-to-lock : Both Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket

Captive thumbscrews : Top Radiator Bracket, PSU Bracket

Left side panel : Tempered Glass

Right side panel ; Industrial steel

Compatibility

Power supply type : ATX

Motherboard compatibility : E-ATX (277 mm) / ATX / MATX / m-ITX

PSU max length : 180 mm

GPU max length : 349 mm

GPU max height : 176 mm (7 slot) including cables

CPU cooler max height : 173 mm

Front radiator : 280/360 mm

Top radiator : 240/280 mm

Rear radiator : 120 mm

Bottom radiator : -

Dimensions

Case dimensions (LxWxH) : 433 x 229 x 507 mm

Case dimensions w/o feet/protrusions/screws : 423 x 229 x 483 mm

Package dimensions : 596 x 345 x 550 mm
